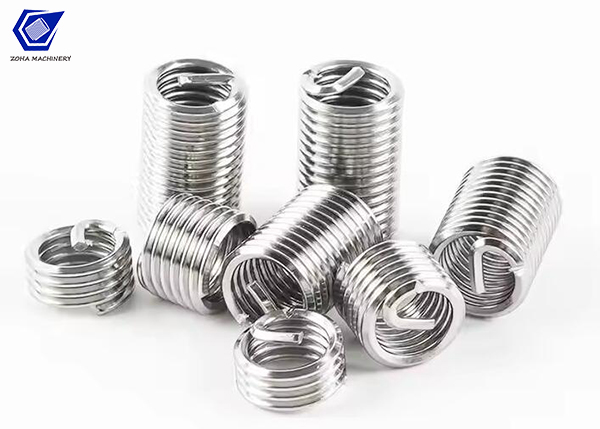

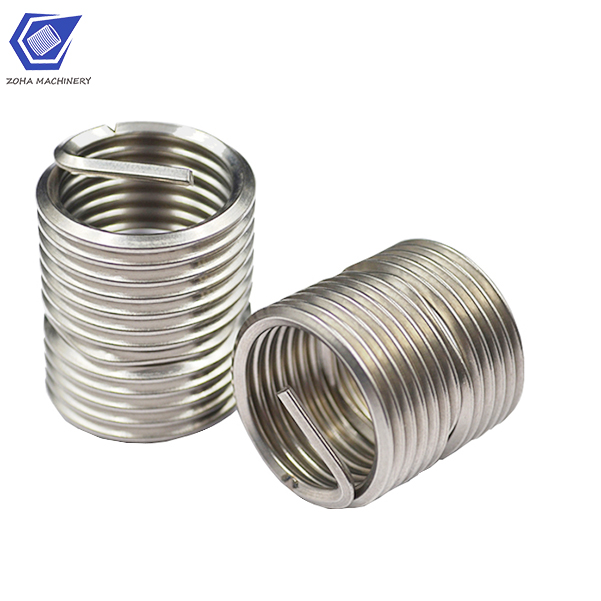

UNF #4-40 to 1 1/2"-6 size stainless steel 304 thread insert coilthread
Threaded Inserts are cylindrical, metal bushings with features on the outside which lock them into a plastic or metal base material to anchor your fasteners.
ZOHA threaded Inserts provide high-quality, permanent, wear-resistant internal threads and are designed to be installed in molded or drilled holes in one simple step.
Material & Coatings:
Zoha thread inserts are made from a range of materials and with various coatings to suit virtually any type of equipment manufacturing.
| Material Type | Material Grade | Min. Tensile Strength at 20 ℃ | Max. Operating Temperature* | Typical Applications | Surface Coatings |
| Stainless Steel
304
321
316L |
0Cr18Ni9/0Cr19Ni9
1Cr18Ni9Ti
00Cr17Ni14Mo2
| >1400Mpa | 425℃ Short time
315℃ Long-term | All normal applications in all materials / Improved corrosion resistance / Salt water applications | No plating
Dry lubrication film
Cadmium plating
Sliver plating |
| Phosphor Bronze | QSn6.5-0.4
(CuSn6, C51900, C5191) | >1000Mpa | 300℃ Short time
250℃ Long-term | Copper parts / High resistance to some electrolytic couples | No plating
Cadmium plating |
| Iron Alloy | Nitronic 60
(AISI/ASTM Alloy 218, UNS S21800, HPA 50) | >1400Mpa | 425℃ Short time
315℃ Long-term | Valve Stems Pins / Brushes Roller bearings / Pump shafts and rings / Thread inserts / Fasteners | No plating
Dry film lubricant |
| High Temperature Alloy | Inconel X 750
(UNS N07750)
Nimonic 90
(UNS N09901) | >1400Mpa | 750℃ Short time
550℃ Long-term | Aerospace / Turbines / Corrosive Atmospheres / High temperature use | No plating
Sliver plating |
| (*) indicative values |
Package of UNF #4-40 to 1 1/2"-6 size stainless steel 304 thread insert coilthread
Package: Usually packed in boxes or bags, can be packed according to customer requirements.
Delivery: Usually within 3-5 working days after receipt of payment.
|
|
|
